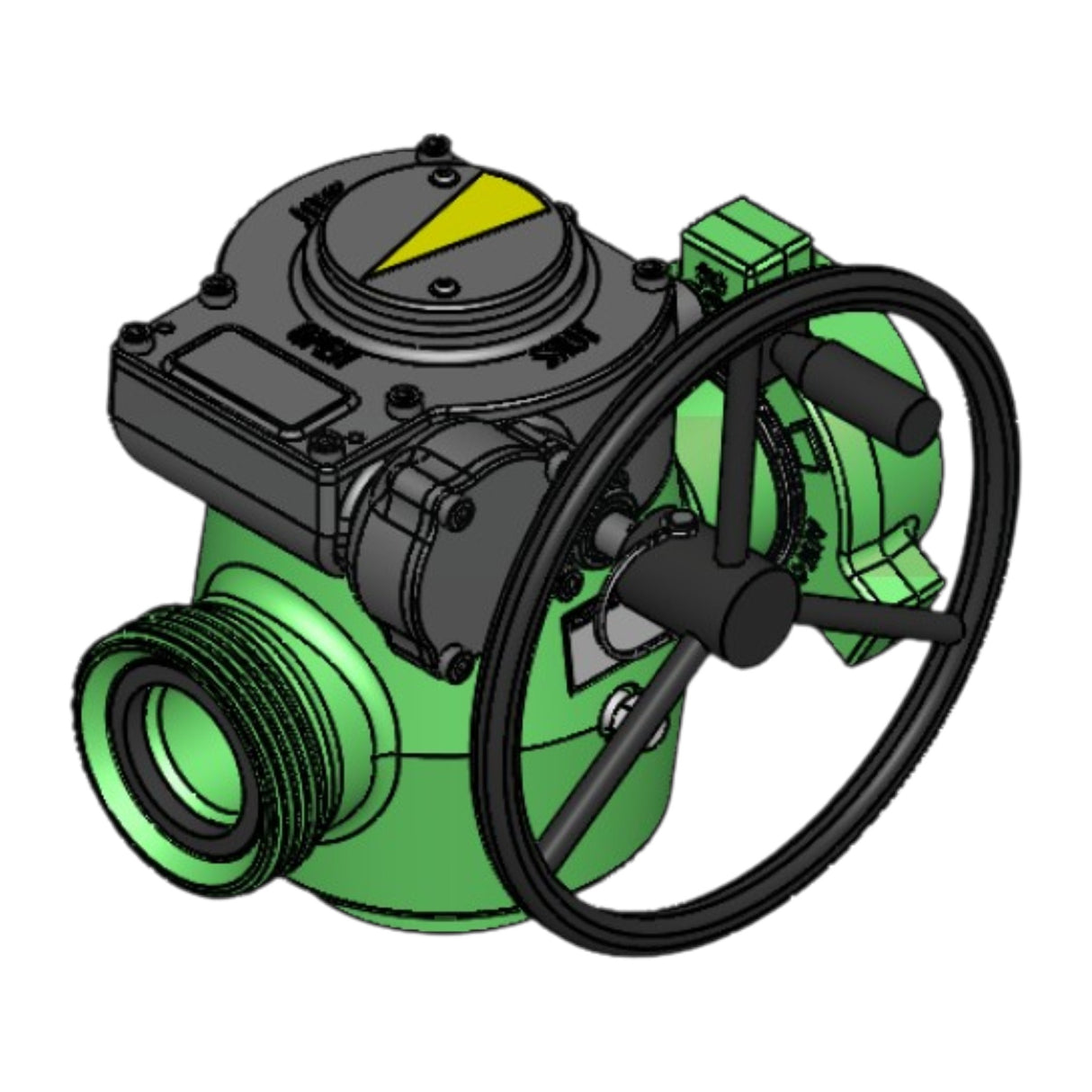

Plug Valve, Gear Op, TE, 3” 1502 MxF, 10000 psi, Sour Service
Plug Valve, Gear Op, TE, 3” 1502 MxF, 10000 psi, Sour Service is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
3in Fig 1502 Gear Operated Plug Valve – 10,000 psi Sour Service
Product Overview
The 3in Fig 1502 Gear Operated Plug Valve is designed for high-pressure oilfield applications where valve size, operating torque, or accessibility make manual operation difficult. Combining RDI's proven 3in Fig 1502 sour service plug valve with a direct-mount Rotork gear operator, this configuration delivers precise valve control, reduced operator effort, and improved safety in demanding field environments.
The full-bore 3in flow path minimizes pressure loss while the gear operator provides smooth, controlled actuation for high-pressure flow control applications.
Key Features
- 10,000 psi working pressure
- Sour service configuration
- 3in Fig 1502 hammer union MxF connections
- Direct-mount Rotork AB2000N gear operator
- 14in handwheel for controlled actuation
- Full-bore flow path
- Reduced operating effort compared to manual valves
- Forged alloy steel pressure-containing components
- Field serviceable design
- Positive open and closed position stops
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Gear Operated Plug Valve |
| Size | 3in |
| Figure | Fig 1502 |
| End Connections | Male x Female Hammer Union |
| Working Pressure | 10,000 psi |
| Service | Sour Service |
| Valve Bore | 2.75 in |
| Gear Operator | Rotork AB2000N |
| Handwheel Size | 14 in |
| Overall Length | 15.69 in |
| Overall Height | 17.95 in |
| Approximate Weight | 215 lbs |
Construction & Materials
Forged alloy steel plug valve construction utilizing NACE-compliant pressure-containing components, HSN/HNBR sealing elements, alloy steel seat carriers, and serviceable internal wear components. The valve is equipped with a direct-mount Rotork AB2000N gear operator to provide controlled valve actuation while maintaining the reliability and serviceability of the standard RDI plug valve platform.
Applications
- Hydraulic fracturing
- Flowback operations
- Well testing
- Production testing
- High-pressure manifold systems
- Temporary surface production facilities
- Cementing operations
- Large bore pressure control systems
- Remote or difficult-access valve locations
Product Benefits
- Significantly reduces operating torque
- Improved operator safety and ergonomics
- Smooth, controlled valve actuation
- Full-bore design minimizes flow restriction
- Durable forged pressure-containing construction
- Reliable sealing performance in sour service environments
- Compatible with standard Fig 1502 iron systems
- Ideal for larger valves where manual operation becomes difficult
Assembly Components
The assembly includes:
- 3in Fig 1502 Plug Valve
- Direct-mount Rotork AB2000N Gear Operator
- 14in Handwheel
- Mounting base assembly
- Position indication cap
- Open and closed position stop adjustment system
-
